Artificial solar lighting that radiates light beam of all wavelengths (300-2500 nm) of natural sunlight that falls on the earth’s surface.

XELIOS is an artificial solar lighting lamp that reproduces natural sunlight (wavelength range 300-2500nm) with a wide wavelength range from ultraviolet to visible to infrared.
Until now, artificial solar lighting has reallized the following by using different types of filters.
・A/AF type emits visible rays.
・B/BF type emits ultraviolet light (300nm and up, UV-A + UV-B) + visible rays.
・E/EF type emits UV-A + visible + infrared (up to 2500nm) rays.
This terrestrial solar lighting lamp covers light beam of all wavelength ranges from UV-B (300nm and above) to infrared (up to 2500nm), making it possible to test and evaluate under conditions closest to the actual environment on Earth.

Main use
Main features
Spectral distribution data・Illuminance distribution data
Specifications
Options（XG-500Series）

Main use

For all evaluation tests that require light beam of all wavelengths range, such as simultaneous testing of heat load (heat resistance) and UV degradation.

For example

Photochemical reaction testing
Light resistance testing
UV degradation testing
Photovoltaic evaluation
Temperature rise and heat insulation testing
Photocatalysis research
Bioenergy research
Infrared camera and sensor evaluation

etc.

Main features

Since it covers the entire wavelength range of sunlight that reaches the earth (300-2500nm), testing and evaluation can be performed under conditions close to the actual environment.

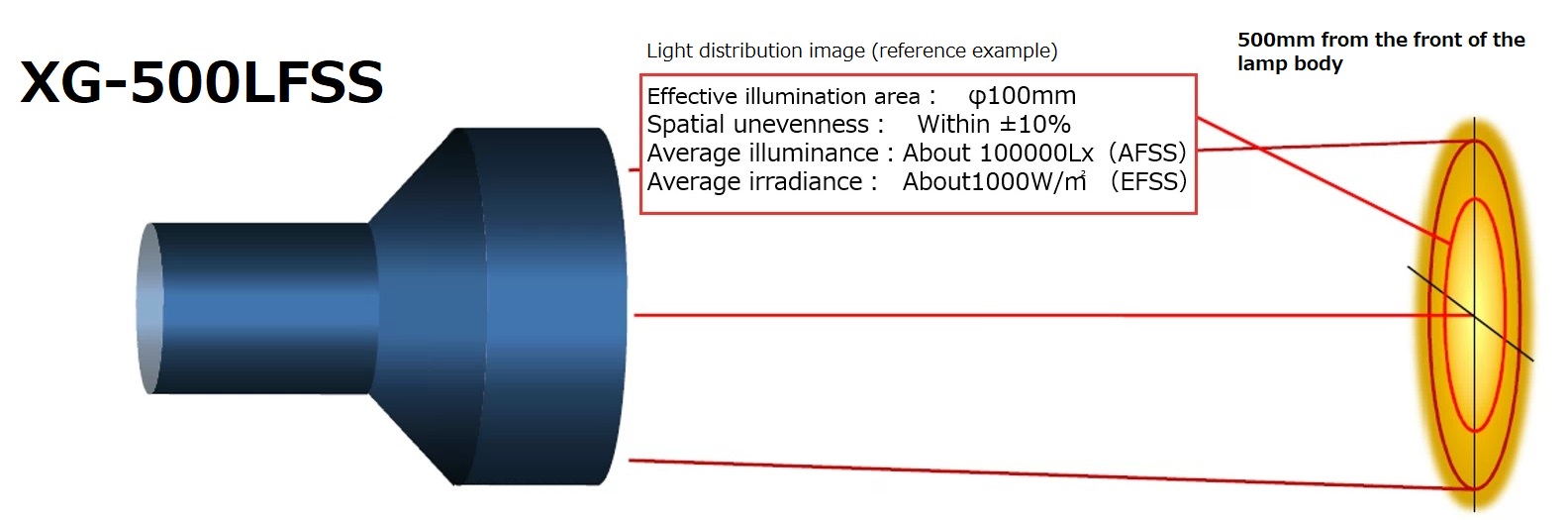

The concentrated light type (super spot) achieves the equivalent illuminance (100,000 Lx)/energy (1,000 W/m2) as sunlight in midsummer. (Model: XG-500LSS/XG-500LFSS)
All wavelengths of ultraviolet (UV-B, UV-A), visible and infrared rays are approximated to the spectral characteristics of natural sunlight, making it possible to perform highly reproducible photochemical reaction tests, outdoor exposure alternative tests and light resistance tests.
Since there is very little deteriorated change as result of aging, testing and evaluation can be performed under the same conditions until the end of the lamp life.

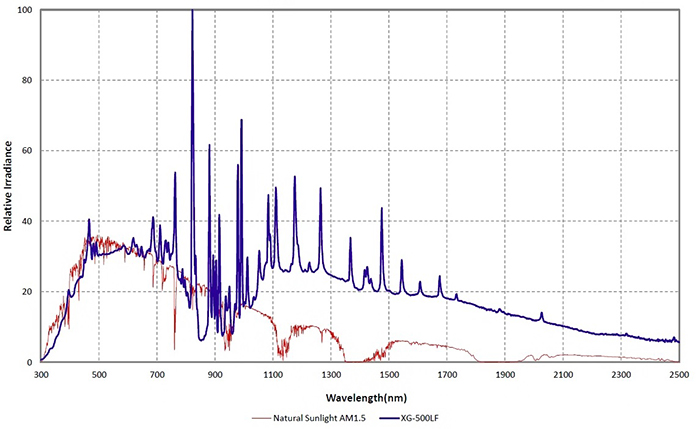

Spectral distribution data

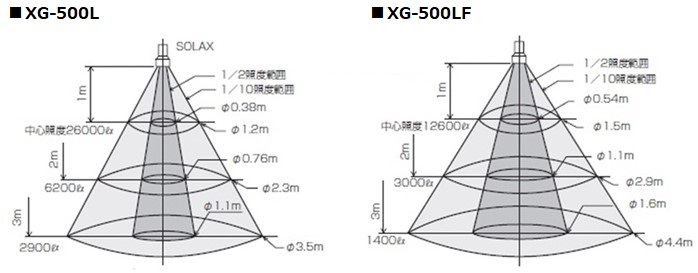

Illuminance distribution data

*For inquiries regarding the light distribution characteristics of the XG-500LSS, please contact us here.

Specifications

TYPE	STANDARD TYPE		SUPER SPOT TYPE		STANDARD TYPE		SUPER SPOT TYPE
MODEL	XG-500L	XG-500LF	XG-500LSS	XG-500LFSS	XG-100L	XG-100LF	XG-100LSS	XG-100LFSS
FILTERS	TRANSPARENT	FROSTED	TRANSPARENT	FROSTED	TRANSPARENT	FROSTED	TRANSPARENT	FROSTED
Input power	AC100-120V 50/60Hz Approx 9A AC200-240V 50/60Hz Approx 4.5A				AC100-120V 50/60Hz Approx 1.8A AC200-240V 50/60Hz Approx 1.0A
Lamp	500W Xenon lamp				100W Xenon lamp
Lamp life	Approx 1500Hs（Ave, On contiuous use）				Approx 2000Hs（Ave, On contiuous use）
Adjust range of irradiance	60 -100%（Max 100%)				－
Operating temperature range	-10 ～ 30℃				-10 ～ 30℃
Operatiing humidity range	10～90％				10～90％
Weight	Lamp house Approx 5.0kg + Power supply Approx 3.5kg				Approx 2.5kg

※Upon request, we can also manufacture a super spotlight lighting type (*) that can produce light of 1 SUN (1000 W/m2) or 100000 lux.(XG-500LSS , XG-500LFSS).

Options（XG-500Series）

Tripod stand type
ST-C03P
Tripod stand type with downward irradiance mounting bracket ST-C03P +DW50
Ceiling flange type
(separate power supply mounting)
FC-30L
Ceiling flange type
(integrated power supply mounting)
FC-30L

Lamp
SET-500F
Filter
LF-196
Power cord for 100-120V
CP2-100 for Japan,100V
CP1-100 for overseas, 100-120V
Power cord for 200-240V
CP0-200 without a plug

※In addition to the "L-196/LF-196" filter, we also offer a variety of other filters for various applications. For more information, please click here.
※*Various 100W type options are also available. For details, please click here.

Option specifications

Name	Tripod stand	Ceiling flange
Model	ST-C03P	FC-30L
Telescopic size	1200～2000ｍｍ	ー
Primary material	Aluminum	Steel plate
Surface color	Silver(anodic oxide coatings)	Munsell symbol N3.0
Approx. unit weight	3.2kg	0.32kg
