Artificial Solar Lighting – XELIOS 500W Series

TOP > Products > Artificial Solar Lighting – XELIOS 500W Series

Artificial Solar Lighting – XELIOS 500W Series

See colors accurately anytime and anywhere!

lig02

The XELIOS 500W Series contains the basic models of artificial solar lighting, and produces light with the same spectrum as natural sunlight that reaches the ground within ±2 hours of noon on a clear day. It allows colors to be seen exactly as they appear in sunlight even when working indoors.

In addition to research in automotive industry and photographic fields, it is also extremely effective for art displays.

Specifications

The energy in the ultraviolet and infrared spectrums can be adjusted by filters according to the type of application, and customers can select specifications to meet their application requirements including light with or without UV and IR, degree of diffusion, and intensity.
ITEM/USE FOR COLOR EVALUATION FOR HEALTH,BIOTECH FOR SOLAR POWER TESTING FULL SPECTRUM SPACE REPRODUCTION
MODEL XG-500A XG-500AF XG-500CF XG-500B XG-500BF XG-500E XG-500EF XG-500L XG-500LF XG-500HFSS
SPECTRAL CORRECTION RANGE 370～780nm
（CUT UV RAYS,CUT 80% OF THERMIC RAYS）		 300～780nm
（INCLUDE HARMLESS UV RAYS, CUT 80% OF THERMIC RAYS）		 350～2500nm 300～2500nm 300～2500nm
FILTER LENS TRANSPARENT FROSTED FROSTED TRANSPARENT FROSTED TRANSPARENT FROSTED TRANSPARENT FROSTED FROSTED
LUMINOUS INTENSITY
BEAM DEGREE		 26000cd, 60° 12600cd, 72° 26000cd, 60° 12600cd, 72° 26000cd, 60° 12600cd, 72° 26000cd, 60° 12600cd, 72° Click here for details
COLOR RENDERING 98 96 96 96 96
COLOR TEMPERATURE Approx 5500K Approx 6500K Approx 5500K Approx 5500K Approx 5500K Approx 5500K
POWER SOURCE AC100~120V/9A, OR AC200~240V/5A, 50/60Hz
CAPACITY 500W
DIRECTION TO LIGHT FROM DOWNWARD TO HORIZONTAL (NOT FOR UPWARD USE)
OPERATING TEMPERATURE -10～30℃
WEIGHT 7.3kg (INCLUDE POWER UNIT) 8.5kg (INCLUDE POWER UNIT)

Precautions for use

  1. Energy in the ultraviolet and infrared spectrums is adjusted by filters according to the type of application.
  2. The knob can be used to make continuous light adjustment in the range of 60 – 100%.
  3. A､AF､B､BF､CF models cut thermic rays by approximately 80%.
  4. Be sure to read the instruction manual before use.
  5. Upon request, we can also manufacture a super spotlight lighting type (*) that can produce light of 1 SUN (1000 W/m2) or 100000 lux.(XG-500ASS, XG-500AFSS, XG-500BSS, XG-500BFSS, XG-500ESS, XG-500EFSS , XG-500LSS , XG-500LFSS , XG-500HFSS).
  6. Mounting brackets and spare parts are options. Refer to the options section below.
  7. Combination part numbers are set for combinations of mounting brackets and lighting lamps. For details, please contact the SERIC Sales Division.
  8. The service environment is indoors, with a service temperature range of -10 to +30°C.
  9. The color temperature contains error of no more than ±10%.
  10. For downward irradiation, mounting bracket for downward irradiance are available as an option.
※”Artificial concentrating-type solar lighting (super spotlight type)“WEB page ⇒ Click here

Spectral distribution

100wbunkou

Light distribution

500W-Light distribution2

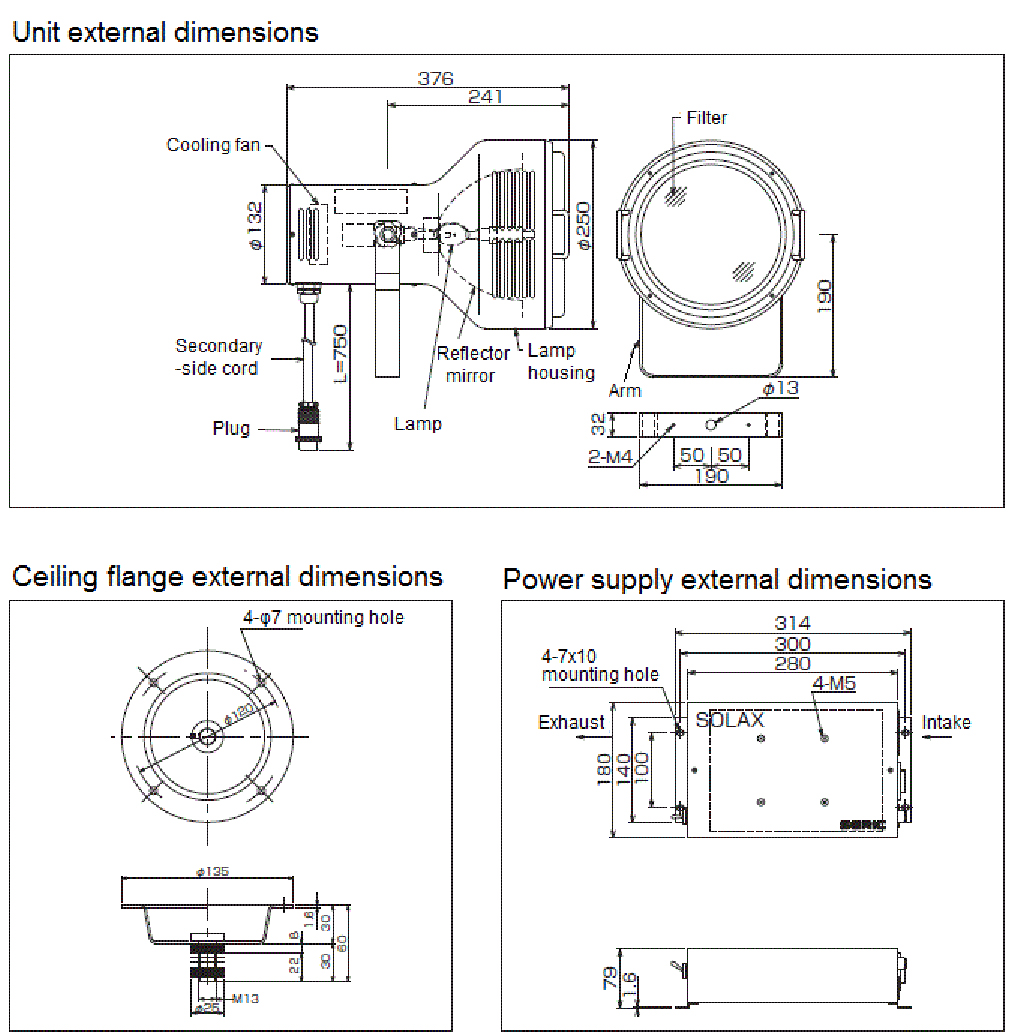

External drawing

500wsunpo1_en

Options

  • ST-C03P
    Tripod stand type
    Unit: XG-500*
    Tripod: ST-C03P
    （ST-M2AD has been discontinued）
  • Tripod stand type with downward irradiance mounting bracket
    Unit: XG-500*
    Tripod: ST-C03P
    Downward irradiance mounting bracket： DW50
  • 500Wopt2
    Ceiling flange type
    (separate power supply mounting)
    Unit: XG-500*
    Ceiling flange: FC-30L
  • 500Wopt3
    Ceiling flange type
    (integrated power supply mounting)
    Unit: XG-500*
    Ceiling flange: FC-30L

The “*” is followed by the filter type.

  • Lamp
    SET-500F
  • Filter
    A-196、AF-196 、CF-196
    B-196、BF-196 、E-196
    EF-196、L-196、LF-196
    HF-196
  • 100V system
    power cord
    Japan 100V system：CP2-100
    Overseas 100V system： CP1-100
  • 200V system
    power cord
    CP0-200

Option specifications

<Mounting bracket>

Name Tripod stand Booster tripod stand Ceiling flange
Model ST-C03P ST-M2BT FC-30L
Primary material Aluminum Steel plate
Approx. unit weight 3.2kg 5.2kg 0.32kg

<Spare parts>

Name Lamp Filter with frame Power cord
Model SET-500F (1)A-196 (2)AF-196
(3)CF-196(4)B-196 (5)BF-196(6)E-196 (7)EF-196(8)L-196
(9)LF-196(10)HF-196 		(1)CP2-100
(2)CP1-100
(3)CP0-200
Specifications Capacity: 500W
Lifetime:1500H
(continuous illumination) 		(1)Transparent for color evaluation
(2)Frosted for color evaluation
(3)Frosted for color evaluation with 6500K
(4)Transparent for biotech applications
(5)Frosted for biotech applications
(6)Transparent for solar energy testing
(7)Frosted for solar energy testing
(8) Transparent for full wavelength radiation
(9) Frosted for full wavelength radiation
(10) Frosted for space reproduction 		(1)Japan 100V system cord with adapter plug: 3 m
(2)Overseas 100V system cord: 3 m
(3)Japan/overseas 200V system cord w/o power supply side terminal plug: 3 m

Note: Filters are also available individually without frames.
