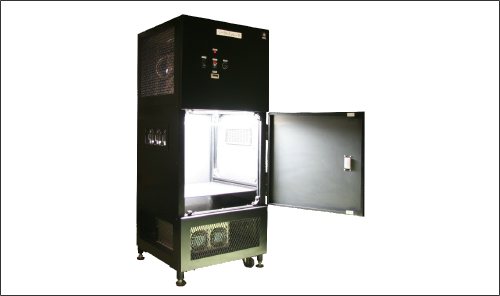

Space Solar Simulator SML-2K1UV0

*Space (AM0) → A secondary reference solar cell is used as the measuring instrument, and the calibration value for AM1.5G is multiplied by 1.367 to derive the AM0 reference irradiance.

A space solar illuminator for illuminating large areas has been added to the Space Solar Simulation System series, a line of lights that reproduce sunlight in outer space.
Because it can illuminate a larger area than the Space Solar Illuminator (XG-500HFSS), it enables the testing and evaluation of larger components and materials.
These lights can be customized to meet your needs, and we provide simulated sunlight for a wide range of space applications, including systems that illuminate even larger areas and systems equipped with thermostatic chambers.

Main Applications
Key Features
Customization Examples
Spectral Distribution
Specifications

Main Applications

Simplified Evaluation of Solar Cells for Satellites
Image Quality Evaluation of Satellite Cameras
Functional Testing of Infrared Sensors
Performance Evaluation of Attitude Control Systems (ACS)
Light Resistance Testing of Satellite Components
Temperature Rise and Heat Shielding Performance Testing of Materials
Reproduction and Testing of Chemical Reactions Caused by Sunlight in Space

For Other Tests and Evaluations Requiring Large-Area Illumination

*

For applications with an irradiation area of φ100 mm or less, the Space Solar Illuminator XG-500HFSS is ideal.
Learn More

High-precision reproduction of sunlight in space!Space Solar Illuminator 'XG-500HFSS'

Key Features

Close approximation of the spectral characteristics of sunlight in outer space (AM0)!! (Compliant with ISO 15387 Class B)
Simulates sunlight in outer space (AM0) at an irradiance of 1,367 W/m²
Enables testing and evaluation of solar cells, cameras, sensors, and other small-satellite components in an environment that closely simulates the conditions of outer space
High uniformity (illumination variation within ±10% over a 300‑mm square area)
Equipped with a dimming control (adjustable range: 70 to 100%)
Extensive experience in manufacturing units integrated with temperature and humidity chambers
In-person demonstrations available at our facility
Daily rentals available (testing and evaluation to be conducted at our facility)
Expandable to larger illumination areas through additional lamps (30-lamp, 20-lamp, and other configurations have been delivered)
Customizable to meet your requirements — horizontal, downward, and variable-angle illumination configurations, and more
Multiple installation options: self-supporting, frame-mounted, ceiling-suspended, and mobile

Customization Examples

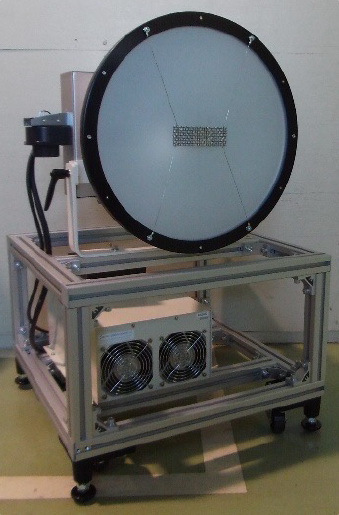

Mobile, horizontal illumination type with single lamp

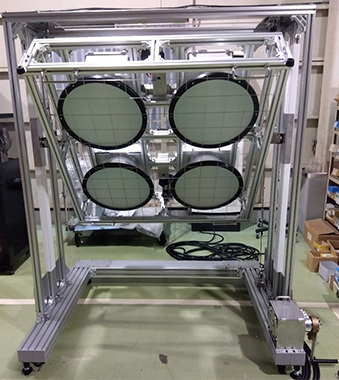

Variable angle type with four lamps
(example of horizontal illumination)

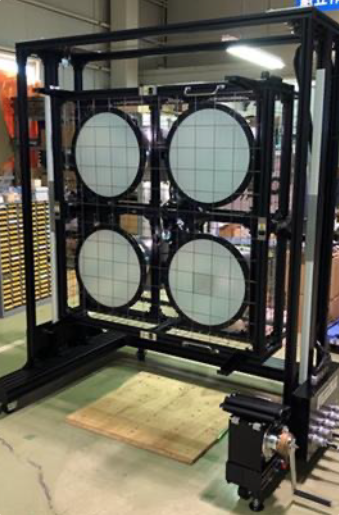

Variable angle type with four lamps
(example of diagonally downward horizontal illumination)

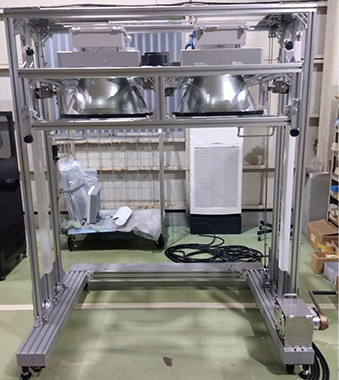

Variable angle type with four lamps
(example of downward horizontal illumination)

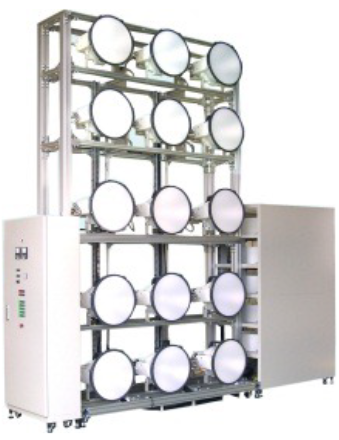

Horizontal illumination type with 15 lamps

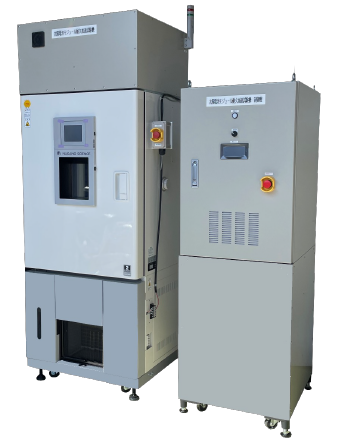

Integrated with a temperature and humidity chamber

We provide simulated space sunlight tailored to your needs.
Please feel free to reach out to us.

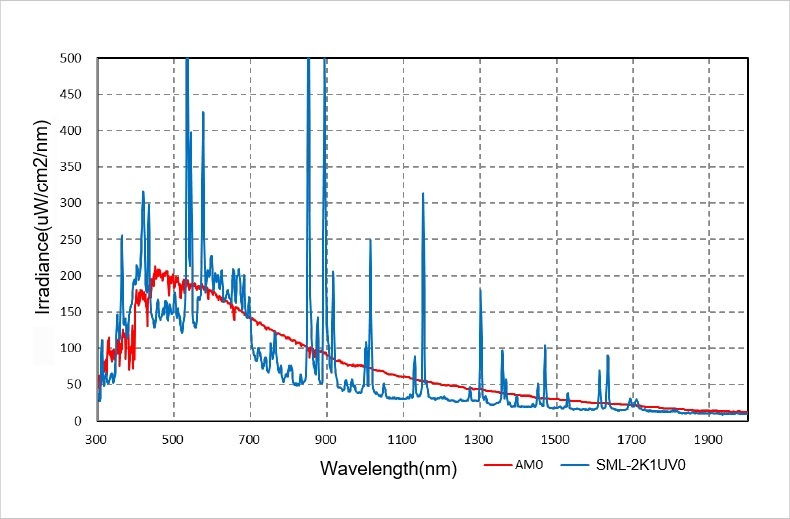

Spectral Distribution

Specifications

Model	SML-2K1UV0
Input power	φ200 V, approx. 12 A
Lamp	2 kW metal halide lamp
Lamp life	approx. 2,000 hours (average, under continuous operation)
Irradiance	1,367 W/m² *The measuring instrument is a secondary reference solar cell. The calibration value for AM1.5G is multiplied by 1.367 to derive the AM0 reference irradiance.
Adjust range of irradiance	70 to 100% (Max 100%)
Spatial non-uniformity	within ±15%
Temporal instability	within ±3% (ISO 15387 Class B)
Spectral match	0.4 to 1.6 (ISO 15387 Class B)
Operating temperature range	0 to 30°C
Operating humidity range	10 to 90%
